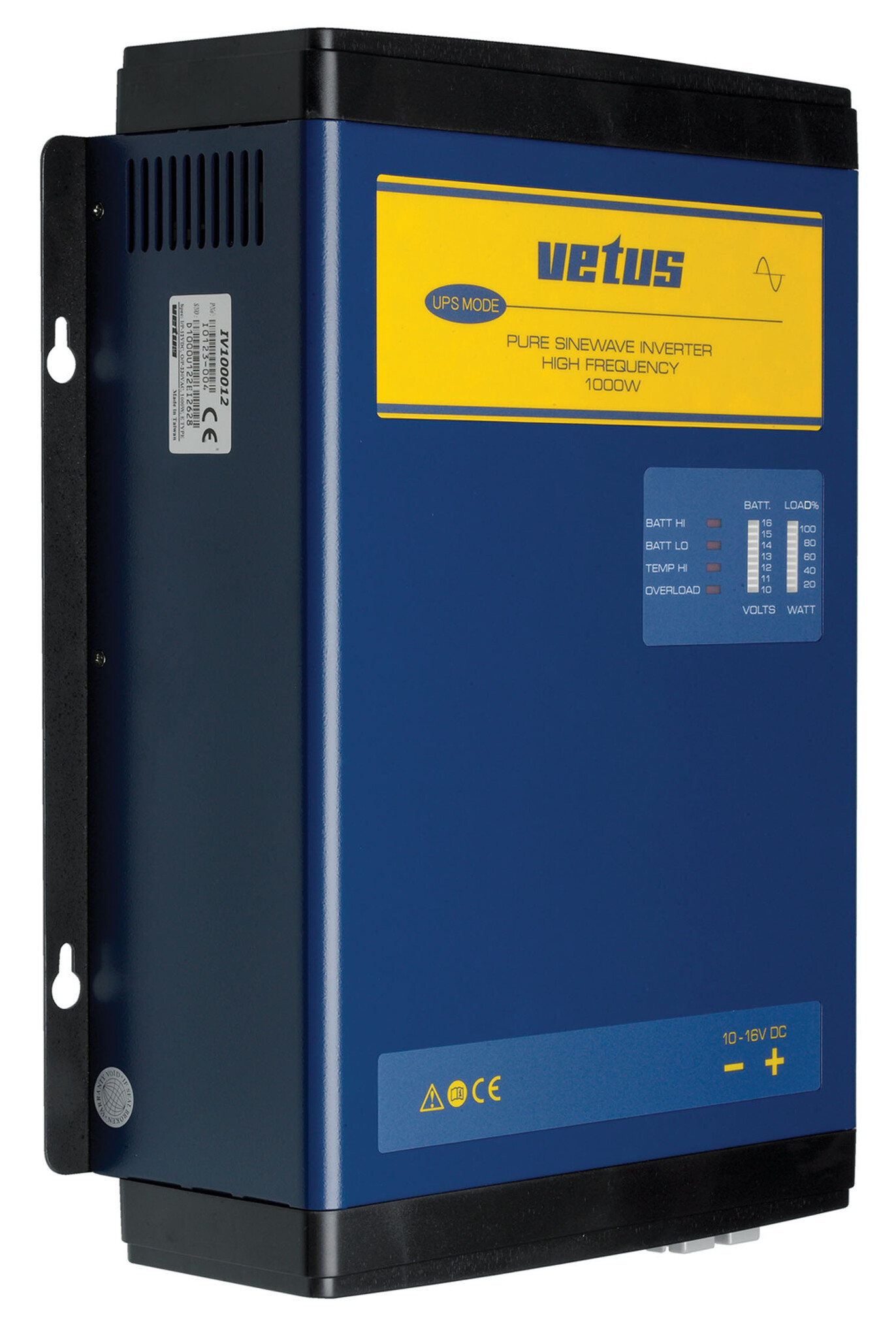

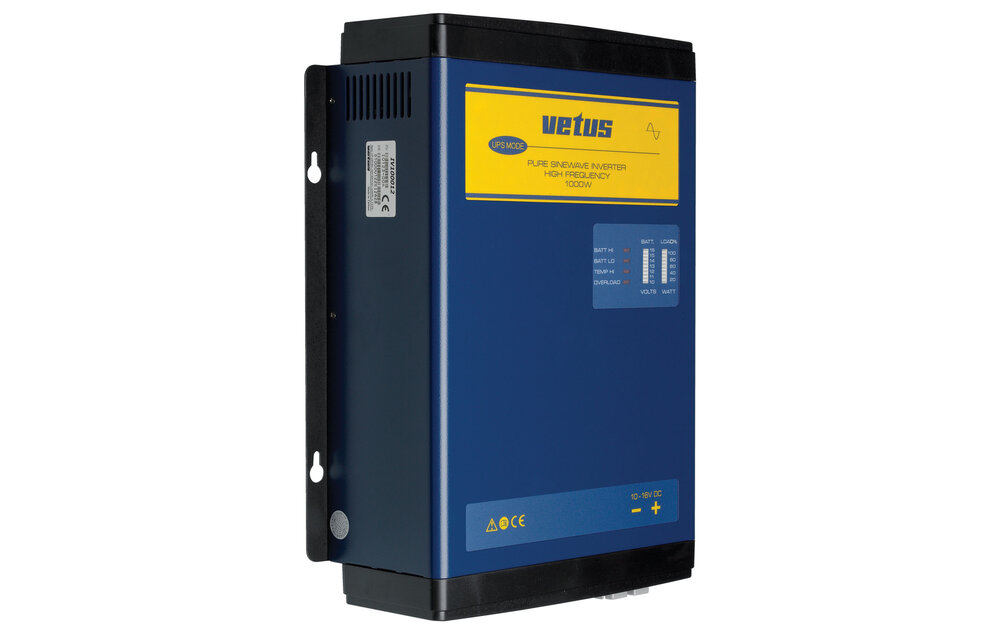

De compacte omvormer gebruikt hoogfrequent-technieken en levert een zuivere sinus. Hoog piekvermogen, ingebouwde UPS, tot 75°C geen vermogensverlies.
| IV100012 | IV100024 | IV150012 | IV200024 | IV300012 | |
|---|---|---|---|---|---|
| Frequentie (MHz) | Adjustable: 50 Hz or 60 Hz (+/- 0,05%) | Adjustable: 50 Hz or 60 Hz (+/- 0,05%) | Adjustable: 50 Hz or 60 Hz (+/- 0,05%) | Adjustable: 50 Hz or 60 Hz (+/- 0,05%) | |
| Relatieve vochtigheid | Max. 95 %, condensation-free (all printed circuit boards are coated) | Max. 95 %, condensation-free (all printed circuit boards are coated) | max. 95 %, condensation-free | Max. 95 %, condensation-free (all printed circuit boards are coated) | Max. 95 %, condensation-free (all printed circuit boards are coated) |
| Accuspanning nominaal | 10 to 16 V | 20 to 32 V | 10 to 16 Volt | 20 to 32 V | 10 to 16 V |
| Max ingangsstroom bij 10,5V resp 21V en Pnom | 112 A | 56 A | 167 A | 112 A | 334 A |
| Golfvorm | Sinus, total harmonic distortion < 3% | Sinus, total harmonic distortion < 3% | Sinus, total harmonic deformation < 3 % | Sinus, total harmonic distortion < 3% | Sinus, total harmonic distortion < 3% |
| Piekvermogen | 60 min.105 - 110% | 5 sec.150% | 50 min. 110-120% | 1 sec. 200% | 10 min.140 - 145% |
| Cos phi | All types of load are permitted | All types of load are permitted | All types of load are permitted | All types of load are permitted | |
| Ingangsspanning in UPS mode | 180 - 245 V AC, Switch time < 3msec. | 180 - 245 V AC, Switch time < 3msec. | 180 - 245 V AC, Switch time < 3msec. | 180 - 245 V AC, Switch time < 3msec. | |
| Rendement | 83 - 85% | 83 - 85% at maximum loading | 83 - 85% | 83 - 85% | |
| Nominaal vermogen | Continuous at cos phi=1, at a maximum inverter temperature of 167°F | Continuous at cos phi=1, at a maximum inverter temperature of 167°F | Continuous at cos phi=1, at a maximum inverter temperature of 167°F | Continuous at cos phi=1, at a maximum inverter temperature of 167°F | |
| Omgevingstemperatuur (°F) | During storage: -22°F to +158°FDuring use: 32°F to +122°F (inverter temp. 167°F) | During storage: -22°F to +158°FDuring use: 32°F to +122°F (inverter temp. 167°F) | During storage: -22°F to +158°F During use: 32°F to +122°F (inverter temp. 167°F) | During storage: -22°F to +158°FDuring use: 32°F to +122°F (inverter temp. 167°F) | |
| Vermogen nominaal ('c) | Continuous at cos phi=1, at a maximum inverter temperature of 75°C | Continuous at cos phi=1, at a maximum inverter temperature of 75°C | Continuous at cos phi=1, at a maximum inverter temperature of 75°C | Continuous at cos phi=1, at a maximum inverter temperature of 75°C | |
| Omgevingstemperatuur ('c) | During storage: -30°C to +70°CDuring use: 0°C to +50°C (inverter temp. 75°C) | During storage: -30°C to +70°CDuring use: 0°C to +50°C (inverter temp. 75°C) | During storage: -30°C to +70°C During use: 0°C to +50°C (inverter temp. 75°C) | During storage: -30°C to +70°CDuring use: 0°C to +50°C (inverter temp. 75°C) | |
| Gewicht (kg) | 8,4 | 9 | 10,46 | 13,32 | 13 |
